casio al-8

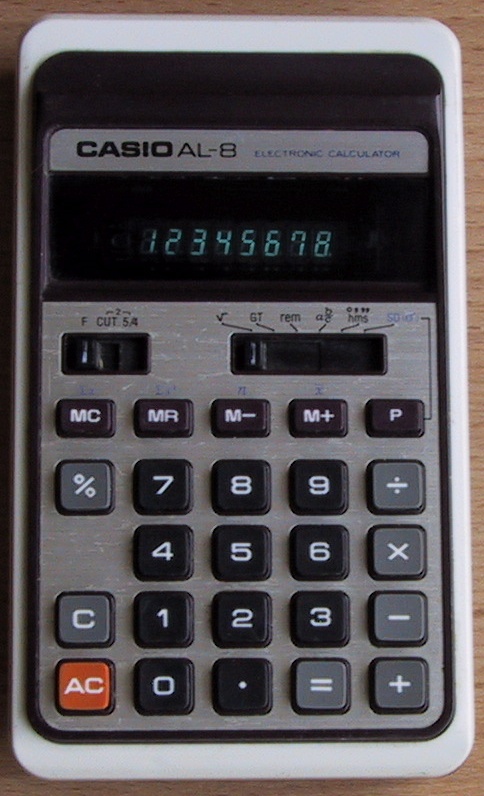

the casio al-8 is a handy little machine for quick and easy calculation. it was the first calculator to support fractions and released in 1976.  it was quickly superseded by the al-10 which is the same but with a ten digit display.

although fractions was an exciting new feature, the 8 digit display was a major limitation with this machine. fractions are represented using a separator symbol which takes up one digit position. thus only 6 digits are available to display a fraction when a whole part is included. so for example, the number 355/226 cannot be displayed, because once reduced becomes 1/129/226 which requires 9 digits.

i often wonder why casio did not choose to use the decimal point symbol to delimit the fractional parts. each digit of the display can display a dot as well as the 7 number segments. the above example would then display as, 1.129.226. pure fractions would show a zero whole part, eg 0.1.2 for 1/2 otherwise they might be confused with floating point numbers.

sometimes this model would suffer the sticky button problem.
